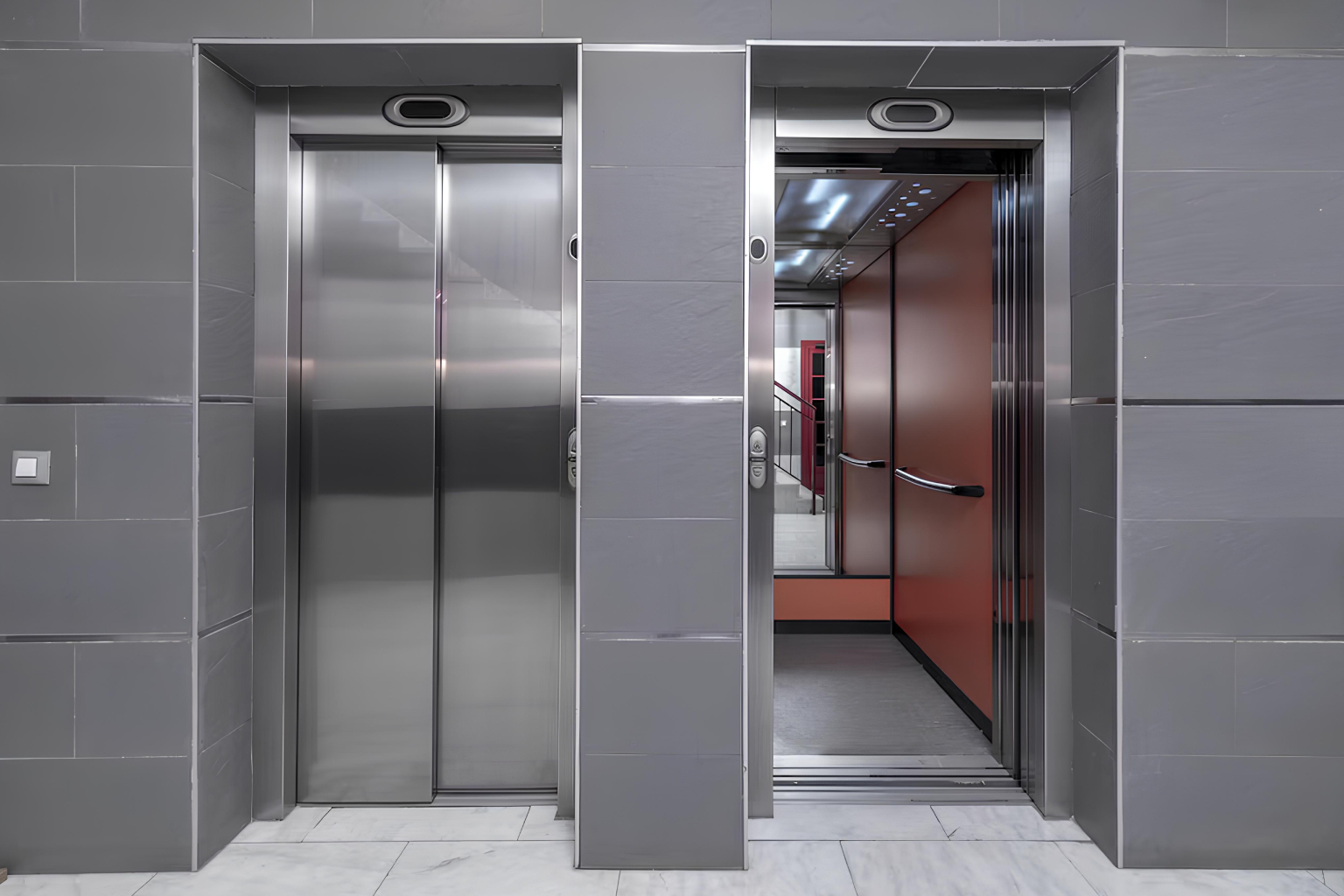

Passenger Elevators

Asia Elevators' passenger elevators are engineered for comfort, speed, and safety across complexes, office towers, residential apartments, and hotels. These systems are built for high reliability, quiet operation, and customizable design to suit premium and functional interiors alike.

Load Capacity

320 kg – 2000 kg (4 to 26 passengers)

Speed Range

0.50 m/s to 2.00 m/s (higher speeds available for high-rise variants)

Travel Height

Up to 75 meters (customizable per project)

Drive System

Gearless traction / VVVF-controlled system for smooth ride and energy efficiency

Door Type

Automatic Centre-Opening / Telescopic / Glass doors (stainless or matte)

Door Widths

500mm to 3000mm (varies by cabin and use case)

Interior Design & Finish Options

Car Ceiling Designs

Six options with LED downlights, spotlights, or diffused lighting.
Materials include stainless steel, laser-cut acrylic panels, and satin-finish steel.

Wall Panels

Etched stainless steel / Hairline finish / Mirror panels
Custom designs with texture laminates or colored steel

Flooring

Anti-skid vinyl / granite / marble-finish laminate
Shock-absorbing rubber base available for light-duty installations

Technology Solution

Microprocessor-based digital control with braille buttons
Touch panel and voice-assisted options available
Dot-matrix and LCD floor position indicators (red/white LEDs)

Landing Indicators

Digital display with arrow indicators
Hall buttons available in square/round finishes with illumination

Safety & Compliance

Emergency Alarm & Intercom

Inbuilt for all models

EN81 & ISO Compliant

Certified manufacturing and installation standards

Automatic Rescue Device (ARD)

Backup power for safe floor return during outages

Overload Indicator

Prevents movement when weight exceeds limit

Infrared Door Sensor

Ensures doors open if obstruction is detected

Seismic Sensor & Pit Buffers

For earthquake-prone zones (optional)

Applications

Passengers
Offices

Hotels & Service
Apartments

Shopping
Malls

Residential
Towers

Educational
Institutions
